Get Users

Endpoint URL

(see more)

[GET] https://[address]:[port]/rest/ExternalGetUsers

Calling the Endpoint

There is one optional parameter you need to specify:

Parameters

  • Fields - note this field is optional, when passed it is handled as a CSV separated by ,

Headers

  • x-api-key - This is the API key generated by the WCF Connector in Totalview Admin. (see more)

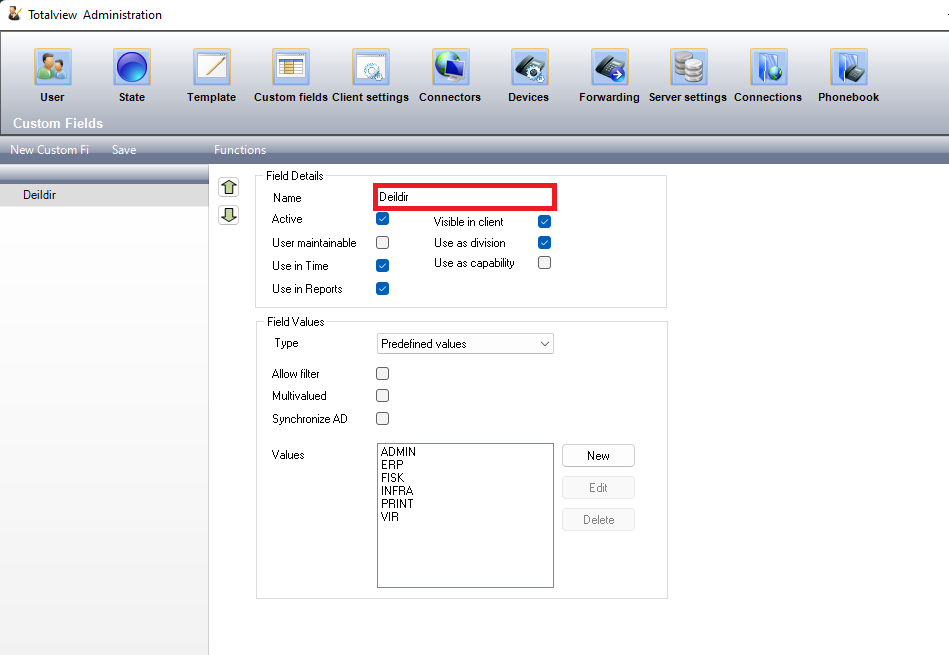

Finding The Custom Field Name

  1. Open Totalview Admin

  2. Navigate to the custom fields view

  3. Click on any custom field

    • The Custom Field name is the first field called Name

    ../../../_images/finding-customfield-name.png
Note: Only custom fields marked as Visible in client will be usable

Example Calling the Endpoint Via cURL

curl --location --request GET 'https://[address]:[port]/rest/ExternalGetUsers?fields=Deildir' \
--header 'x-api-key: APIKEY' \
--data-raw ''

Example result

[
    {
        "CurrentState": {
            "AppointmentID": 2337,
            "Attachment": null,
            "CallCenterSettings": null,
            "ClientName": null,
            "DND": "Keep",
            "End": "2025-05-02T22:00:00",
            "EndAppointment": null,
            "EndingType": null,
            "ForwardTo": "+123456789",
            "Forwarding": "All",
            "Location": "",
            "LocationCoordinates": null,
            "OutboundCallerID": "+123456789",
            "Start": "2025-05-02T20:19:24",
            "StartState": 1,
            "State": {
                "Caption": "In",
                "ShortName": null,
                "SortOrder": 0,
                "StateColor": {
                    "B": 21,
                    "G": 255,
                    "R": 34
                },
                "StateEndingType": "NoRequired",
                "StateID": "In",
                "TextIsRequired": true
            },
            "Subject": "In",
            "UserRecID": 6203
        },
        "CustomFields": [
            {
                "Caption": "Division",
                "UseAsDivision": true,
                "Values": [
                    "ADMIN"
                ]
            }
        ],
        "FirstName": "Tina",
        "FullName": "Tina White",
        "ID": 6203,
        "LastName": "White",
        "LocalNumber": "+123456789",
        "MobileNumber": "+123456789",
        "PhoneState": "Unknown",
        "PresenceState": null,
        "UserID": "TW",
        "WorkNumber": null
    }
]
