Set Forwarding

This endpoint allows you to set a user’s forwarding device. This is useful for redirecting a user’s local device to a different device, which can help in managing their workload and ensuring that they are reachable on the correct device.

Endpoint URL

(see more)

[POST] https://[address]:[port]/rest/ExternalSetForwarding

The endpoint supports both Totalview userid and email

Calling the Endpoint

You must specify three parameters alongside a header:

Parameters

• UserID - note: this field can be set to a userid or email

• ToDevice - What device to forward the user’s local device to.

• ForwardingType - How to forward. Valid values are None, Keep, All, External, and Internal.

Headers

• x-api-key - This is the API key from the WCF Connector in Totalview Admin (see more)

Finding the UserID / Email Address

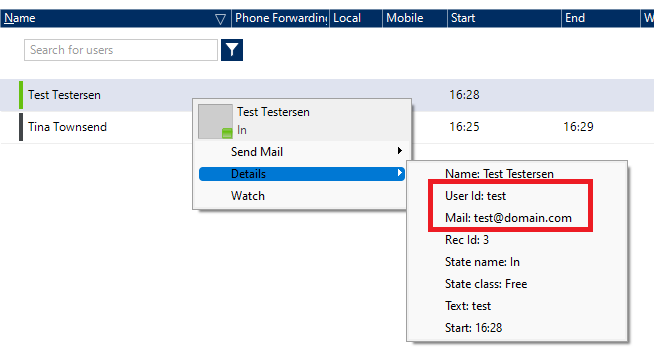

You can find a user’s UserID and Email by right-clicking on the user in the Totalview Client

Example Calling the Endpoint via cURL

curl --location 'https://localhost:5039/rest/ExternalSetForwarding' \
--header 'x-api-key: {BF1E7B12-F085-435D-8FF7-412D88692FC4}' \
--header 'Content-Type: application/json' \
--data '{
   "userId": "test@domain.com",
   "toDevice" : "+123456789",
   "forwardingType": "All"
}'

Example of a successful call

{
   "ExternalSetForwardingResult": {
      "Error": "",
      "Status": true
   }
}

Example of a failed call

{
   "ExceptionType": "SetForwardingFailed",
   "Message": "No default local device found found for user with UserId: test@domain.com"
}
